Reticulate Skin Lesions: Practical Color-Based Algorithm for Initial Clinical Assessment
Lesiones cutáneas reticulares: algoritmo clínico práctico basado en el color de la lesión para el abordaje inicial
Visitas
4014
G. Aedo Inostrozaa,b, L. Pincheira Figueroaa,b, D. Aragón-Caqueoc,
Autor para correspondencia
diegomarceloaragon@gmail.com

Corresponding author.
, R. Loubies Muñoza,b, H. Fuenzalidaa,b, A. Sepúlvedaa
a Facultad de Ciencias Médicas, Universidad de Santiago, Santiago, Chile
b Servicio de Dermatología, Hospital El Pino, Santiago, Chile
c Escuela de Medicina, Universidad de Tarapacá, Arica, Chile
Contenido relacionado
G. Aedo Inostroza, L. Pincheira Figueroa, D. Aragón-Caqueo, R. Loubies Muñoz, H. Fuenzalida, A. Sepúlveda
Este artículo ha recibido
Información del artículo
Resumen
Texto completo
Bibliografía
Descargar PDF
Estadísticas
Figuras (1)
Tablas (1)
Table 1. Classification and most important diseases with reticular patterns.
Abstract

Reticular patterns are observed in a great variety of skin diseases. While these morphologic patterns are often highly distinctive, they are seldom discussed or studied in clinical contexts or recognized as a diagnostic category in their own right. Diseases presenting with reticulate skin lesions have multiple etiologies (tumors, infections, vascular disorders, inflammatory conditions, and metabolic or genetic alterations) and can range from relatively benign conditions to life-threatening ones. We review a selection of these diseases and propose a clinical diagnostic algorithm based on predominant coloring and clinical features to aid in their initial assessment.

Keywords:
Reticulate lesions
Signs and symptoms
Syndrome
Diagnosis
Resumen

Las enfermedades dermatológicas que cursan con un patrón reticular son múltiples y variadas. Aunque dicho patrón particular de presentación morfológica muchas veces es muy distintivo, usualmente es poco discutido y estudiado en el contexto clínico. A menudo estos patrones no se abordan como una categoría diagnóstica propia. Asimismo, las etiologías de este grupo de enfermedades son diversas, desde causas vasculares, infecciosas, tumorales, inflamatorias, metabólicas o genéticas. Además, pueden variar desde condiciones relativamente benignas hasta enfermedades graves que amenazan la vida. Este artículo tiene como objetivo discutir la enfermedad de la piel que se manifiesta con lesiones reticulares y se propone un algoritmo de diagnóstico clínico, basado en el color predominante de las lesiones y en los principales hallazgos clínicos, para un abordaje práctico inicial.

Palabras clave:
Lesiones reticuladas
Semiología
Síndrome
Diagnóstico
Texto completo
Introduction

The term “reticulated” is often used to clinically describe skin lesions configurated in a lattice-like pattern.1

The etiology is varied including vascular, infectious, neoplastic, metabolic, genetic, inflammatory, or idiopathic conditions, exclusively limited to the skin or part of a systemic disease, each with a different prognosis2 (Table 1). Details from the patient's health history, such as location and distribution, along with other signs like the presence of poikiloderma or color, can help guide the diagnosis.3,4

Table 1.

Classification and most important diseases with reticular patterns.

Vascular  Poikilodermatous
Cutis marmorata  Inherited
Cutis marmorata telangiectasica congenita  Rothmund–Thomson syndrome
Livedo reticularis  Congenital dyskeratosis
Livedo racemosa  Xeroderma pigmentosum
Livedoid vasculopathy  Cockayne syndrome
Retiform purpura  Fanconi anemia
Generalized essential telangiectasia  Mendez da Costa syndrome
Pigmentary  Kindler syndrome
Dowling–Degos disease  Degos–Touraine syndrome
Galli–Galli disease  Hereditary acrokeratotic poikiloderma of Weary
Dermatopathia pigmentosa reticularis  Werner syndrome (adult progeria)
Hereditary universal dyschromatosis  Chanarin–Dorfman syndrome
Reticulate acropigmentation  Diffuse and macular atrophic dermatosis
Reticulate acropigmentation of Dohi  Acquired
Reticulate acropigmentation of Kitamura  Poikiloderma of Civatte
Naegeli–Franceschetti–Jadassohn syndrome  Cold, heat, or ionizing radiation-induced lesions
X-linked reticulate pigmentary disorder  Chronic graft-versus-host disease
Mendes da Costa-van der Valk syndrome  Other
Hoyeraal–Hreidarsson syndrome  Dermatomyositis
Partington syndrome  Lupus erythematosus
Atopic dirty neck  Parapsoriasis
Epidermolysis bullosa simplex with mottled pigmentation  Mycosis fungoide
Mottled  Poikiloderma-like cutaneous amyloidosis
Systemic sclerosis  Miscellaneous
Nekam's disease  Erythema ab igne
Infectious  Prurigo pigmentosa
Confluent and reticulated papillomatosis  Mucosal lichen planus
Infectious erythema  Leukoplakia
Marginal erythema  Neonatal lupus erythematosus
Congenital rubella syndrome  Vermiculate atrophoderma
Pityriasis versicolor  Riehl's melanosis
Metabolic
Macular amyloidosis
Amyloidosis cutis dyschromica
Reticular erythematous mucinosis

The goal of this article is to propose a clinical diagnostic algorithm for the management of patients with reticular lesions based on the predominant color of these (brown, red-purple, and white) and the main semiotic findings for an early practical approach (Fig. 1).

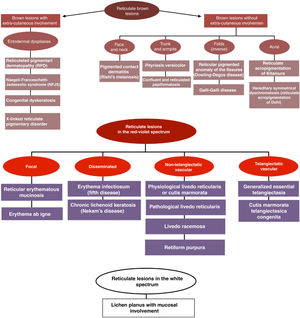

Figure 1.

Diagnostic clinical algorithm of reticular disease based on the lesion predominant color.

(0.62MB).

Additionally, some of the diseases that present with reticular skin lesions will also be briefly described and categorized based on this algorithm. We should mention that the list of diseases is extensive, which is why only the most important ones depending on their frequency of occurrence and clinical relevance will be described.

Reticulate brown lesionsWith extracutaneous components

Reticulated pigmentary dermatosis (RPD): it is characterized by a triad of persistent, diffuse, reticulated hyperpigmentation, non-cicatricial diffuse alopecia, and nail dystrophy. It often presents with punctate palmoplantar keratoderma and hypoplastic dermatoglyphics.5

Naegeli–Franceschetti–Jadassohn syndrome (NFJS): persistent, reticulate, perioral, periocular, and cervical hyperpigmentation after 2 years. Nonetheless, the NFJS is gone in adolescence. It is associated with hypohydrosis, dental involvement, punctate keratoderma, and nail dystrophy.6

Congenital dyskeratosis: a triad of reticulate hyperpigmentation on neck, face, and trunk, along with leukoplakia and nail dystrophy.7 It is often associated with the development of malignancies such as Hodgkin's disease, oropharyngeal, esophageal, gastric, pancreatic, and squamous cell carcinomas.8

X-linked reticulate pigmentary disorder: in women, reticulate hyperpigmentation along Blaschko lines that often disappears in adulthood. In men, generalized reticulate hyperpigmentation that often appears between 4 and 5 years old with extracutaneous involvement.9

Without extracutaneous componentsFace and neck

Pigmented contact dermatitis (Riehl's melanosis): non-spongiotic contact dermatitis associated with daily exposure to low levels of allergens. Its most common presentation is brown-grayish macules of reticular configuration on the face and neck, but is not associated with vesicles, erythema, or itching.10

Trunk and armpits

Pityriasis versicolor: superficial mycosis caused by Malassezia spp. characterized by hyperchromic, or hypochromic patches covered with fine scaling, predominantly on the trunk, neck, and upper limbs. It can look like localized, disseminated, or erythrodermic dermatosis and have various morphologies, including punctate, nummular, reticular, follicular, or pseudopapular, hyperchromic, hypochromic, and atrophic.11

Confluent and reticulated papillomatosis: disorder typical of adolescence characterized by the development of hyperpigmented papules with minimal scaling that become confluent in their center, with gradual peripheral spread and a reticular pattern. It often affects the intermammary region, neck, and back.2

Fold areas

Dowling–Degos disease: autosomal dominant disorder showing after puberty and characterized by symmetrical reticulate hyperpigmentation of neck, armpits, groins, and other flexural areas. It is associated with comedone-like lesions and perioral ice-pick scars.2

Galli–Galli disease: acantholytic variant of Dowling–Degos disease characterized by focal suprabasal acantholysis on the histopathological examination.12

Acral distribution

Reticulate acropigmentation of Kitamura: Autosomal dominant disease.

The onset of reticulate acropigmentation of Kitamura often occurs during the first and second decades of life. It presents with well-demarcated black/brownish macules, slightly depressed on the dorsal region of hands and feet. The presence of small palmar pits is a diagnostic feature.8,13

Reticulate acropigmentation of Dohi: autosomal dominant disorder whose age of onset starts between the first and second decades of life with hypo- and hyperpigmented macules on the dorsal and ventral surfaces of hands and feet that can spread to the proximal regions of the limbs.8

Reticulate lesions in the red-violet spectrumFocal

Reticular erythematous mucinosis: dermatosis associated with the gradual deposition of mucin in the dermis. It presents with erythematous, infiltrated, telangiectatic, and reticular papules in the midline of the chest, with or without itching. Reticular erythematous mucinosis predominantly affects young and middle-aged women. Heat, sweating, and sunlight exacerbate the symptoms.14

Erythema Ab Igne (EAI): chronic pigmentary disorder resulting from prolonged exposure to an infrared heat source. EAI shows areas of reticular erythema associated with hyperpigmentation, epidermal atrophy, and telangiectasias, often on the extremities. There may be an increased risk of malignant cutaneous transformation, including squamous cell carcinoma (SCC), which makes follow-up an important part of the management of this disease.15

Disseminated

Erythema infectiosum: reticular pattern of erythematous eruption on the trunk and limbs triggered by parvovirus B19.4 This pattern typically begins 1–4 days after the appearance of the classic “slapped cheek” rash. It disappears within 2–3 weeks but may reappear after exposure to UV rays and hot baths.2

Nekam's disease: chronic and progressive condition of unknown etiology, often considered a variant of lichen planus. It is characterized by an erythematous face with symmetrically distributed lichenoid keratotic papules of erythematous-violaceous to brown color. These papules cluster in linear or reticular patterns and predominantly affect the lower limbs.16

Non-telangiectatic vascular

Physiological livedo reticularis (LR) or cutis marmorata: physiological response to cold exposure in newborns that disappears upon rewarming. It is characterized by a reticulate bluish vascular pattern involving the limbs and trunk symmetrically. It often resolves by the time the newborn is 6 months old.6

Pathological livedo reticularis: unlike its physiological counterpart, it does not resolve after warming the affected limb, may spread beyond the lower limb, and is often associated with severe systemic involvement of micro- and macro-circulation.17

Livedo racemosa: reticular pattern is often complete in LR, whereas livedo racemosa shows incomplete branching patterns.2 It exhibits a persistent, irreversible, and incomplete reticular network indicative of areas where blood flow is interrupted. When palpable, it is associated with vasculitis following the inflammation of blood vessel walls. If not palpable, it is suggestive of thrombotic disease.18

Retiform purpura: an advanced stage of livedo racemose, often associated with necrosis and ulceration indicative of severe systemic disease.18

Telangiectatic vascular

Generalized essential telangiectasia: benign, asymptomatic, exclusively cutaneous condition characterized by localized or diffuse centripetal telangiectasias in a reticular configuration. The age of onset is often between the 3rd and 4th decades of life.19

Cutis marmorata telangiectasica congenita (CMTC): it is characterized by a reticular vascular mottling resembling physiological cutis marmorata. It stands out from the latter due to its persistent nature (even after rewarming), deep purple color, and association with skin atrophy or ulceration. Distribution can be localized, segmental, or generalized. More than half of the cases reported are associated with other abnormalities.2

Reticulate lesions in the white spectrum

Lichen planus with mucosal involvement: idiopathic lichenoid inflammatory dermatosis that can damage the hair, nails, and mucous membranes. The presence of whitish, asymptomatic, bilateral striae predominantly affecting the jugal mucosa is a common finding. It is associated with HCV, Helicobacter pylori, vaccination (HBV), and drugs. It spontaneously subsides in up to two-thirds of the patients within the first year after symptom onset.20

Discussion

Skin conditions of reticular pattern include a significant number of diseases and disorders. Their extensive etiology and varied clinical presentation make this pattern of lesions significantly challenging regarding diagnosis. In the medical literature currently available, reticular lesions are often described as a pattern of clinical presentation and grouped within other more common dermatological diseases or as differential diagnosis. They are often not addressed as an integrated category, or as a distinct diagnostic entity, which is why integrating most disorders in a practical way due to this clinical finding is clinically challenging. The proposed algorithm uses the color of the lesion, the topography, and other relevant findings to guide the initial approach. We believe it is a useful tool for dermatologists as it provides an easy-to-use and learn simple method for early assessment purposes. However, it does not make up a comprehensive list of all the diseases that may present with a reticular pattern, or include atypical presentations of the aforementioned conditions. The addition of these diseases is based on the frequency of presentation, local epidemiology, and the most common clinical presentation, which eventually allows color categorization. They are also categorized to facilitate the rapid distinction between systemic diseases with cutaneous components and reticulate disease only limited to the skin given the clinical relevance of this distinction.

We should mention that hereditary reticulate pigmentary disorders of the skin can have various phenotypic expressions, which means that sometimes they may not fit into the proposed algorithm. We believe that its main limitation is the patient's skin phototype. The basic clinical presentation of the aforementioned diseases is often reported in populations with lower skin phototypes, which makes extrapolation difficult to populations with higher phototypes.

Finally, we should mention that diseases that show reticulate skin lesions are numerous, and their diagnosis is often difficult to achieve. An algorithmic approach based on color provides a systematic and simplified diagnostic approach easy to apply and helps guide the diagnosis.

Conflicts of interest

None declared.

References
[1]
A. Nast, C.E. Griffiths, R. Hay, W. Sterry, J.L. Bolognia.
The 2016 International League of Dermatological Societies’ revised glossary for the description of cutaneous lesions.
Br J Dermatol, 174 (2016), pp. 1351-1358
[2]
K.A. Adya, A.C. Inamadar, A. Palit.
Reticulate dermatoses.
Indian J Dermatol, 59 (2014), pp. 3-14
[3]
W.D. James, T.G. Berger, D.M. Elston.
Cutaneous vascular diseases.
Andrews’ diseases of the skin clinical dermatology, 11th ed., pp. 801-862
[4]
W. High, C.F. Tomasini, G. Argenziano, I. Zalaudek.
Basic principles of dermatology.
Dermatology, 4th ed., pp. 1-43
[5]
F. Al Saif.
Dermatopathia pigmentosa reticularis: report of a new cases and literature review.
Indian J Dermatol, 61 (2016), pp. 468
[6]
G. Sanodia, M. Hulmani, V.J. Kumar.
Naegeli–Franceschetti–Jadassohn syndrome: a rare reticulate pigmentary disorder.
Indian J Dermatol, 64 (2019), pp. 235-238
[7]
M.M. AlSabbagh.
Dyskeratosis congenita: a literature review.
J Dtsch Dermatol Ges, 18 (2020), pp. 943-967
[8]
K. Sardana, K. Goel, S. Chugh.
Reticulate pigmentary disorders.
Indian J Dermatol Venereol Leprol, 79 (2013), pp. 17-29
[9]
L. Pezzani, M. Brena, M. Callea, M. Colombi, G. Tadini.
X-linked reticulate pigmentary disorder with systemic manifestations: a new family and review of the literature.
Am J Med Genet A, 161A (2013), pp. 1414-1420
[10]
S.P.W. Kumarasinghe, A. Pandya, V. Chandran, M. Rodrigues, N.C. Dlova, H.Y. Kang, et al.
A global consensus statement on ashy dermatosis, erythema dyschromicum perstans, lichen planus pigmentosus, idiopathic eruptive macular pigmentation, and Riehl's melanosis.
Int J Dermatol, 58 (2019), pp. 263-272
[11]
Tinea versicolor. In: Guzmán R, editor. Dermatology. Atlas, diagnosis and treatment, 6. McGraw Hill; 2015. Available from: https://accessmedicina.mhmedical.com/content.aspx?bookid=1538§ionid=102306935 [accessed 5.2.23].
[12]
I. García-Salces, C. Hörndler, L. Requena.
Presentación de enfermedad de Galli–Galli como pápulas liquenoides flexurales.
Actas Dermosifiliogr, 101 (2010), pp. 168-172
[13]
Y.S. Pathania, T.M. Razmi, B.D. Radotra, S.M. Kumaran.
Pigmented palmar pits in reticulate acropigmentation of Kitamura.
Indian Dermatol Online J, 11 (2020), pp. 108-110
[14]
S. Thareja, K. Paghdal, M.H. Lien, N.A. Fenske.
Reticular erythematous mucinosis—a review.
Int J Dermatol, 51 (2012), pp. 903-909
[15]
E.G. Wilder, J.H. Frieder, M.A. Menter.
Erythema Ab Igne and malignant transformation to squamous cell carcinoma.
Cutis, 107 (2021), pp. 51-53
[16]
C. Aruna, D.V. Ramamurthy, T. Neelima, H. Bandaru.
Nekam's disease.
Indian Dermatol Online J, 7 (2016), pp. 520-522
[17]
P. Petzelbauer, R. Loewe, J.S. Pober.
Cutaneous vasculature.
Fitzpatrick's dermatology, 9th ed., pp. 118-129
[18]
C. Herrero, A. Guilabert, J.M. Mascaró-Galy.
Livedo reticularis de las piernas: metodología de diagnóstico y tratamiento.
Actas Dermosifiliogr, 99 (2008), pp. 598-607
[19]
D. Long, G. Marshman.
Generalized essential telangiectasia.
Aust J Dermatol, 45 (2004), pp. 67-69
[20]
Y.S. Cheng, A. Gould, Z. Kurago, J. Fantasia, S. Muller.
Diagnosis of oral lichen planus: a position paper of the American Academy of Oral and Maxillofacial Pathology.
Oral Surg Oral Med Oral Pathol Oral Radiol, 122 (2016), pp. 332-354
